Capacity:1.2-24 m³/min
Working pressure:0.8-1.3 Mpa
Power:7.5-132 KW
开山牌BK系列螺杆式空气压缩机参数 | ||||||||
Kaishan BK series screw air compressor specifications | ||||||||
型号 | 排气压力(MPa) | 排气量(m³/min) | 功率(kW) | 排气接口 | 重量(kg) | 长(mm) | 宽(mm) | 高(mm) |
BK7.5-8G | 0.8 | 1.20 | 7.5 | G¾ | 200 | 800 | 620 | 800 |
BK11-8G | 0.8 | 1.70 | 11 | G1 | 280 | 1000 | 670 | 1090 |
BK15-8G | 0.8 | 2.40 | 15 | G1 | 280 | 1000 | 670 | 1090 |
BK15-8 | 0.8 | 2.40 | 15 | G1 | 270 | 700 | 670 | 1250 |
BK15-10 | 1.0 | 2.20 | 15 | G1 | 270 | 700 | 670 | 1250 |
BK15-13 | 1.3 | 1.70 | 15 | G1 | 270 | 700 | 670 | 1250 |
BK18-8G | 0.8 | 2.95 | 18 | G1 | 350 | 1200 | 800 | 1120 |

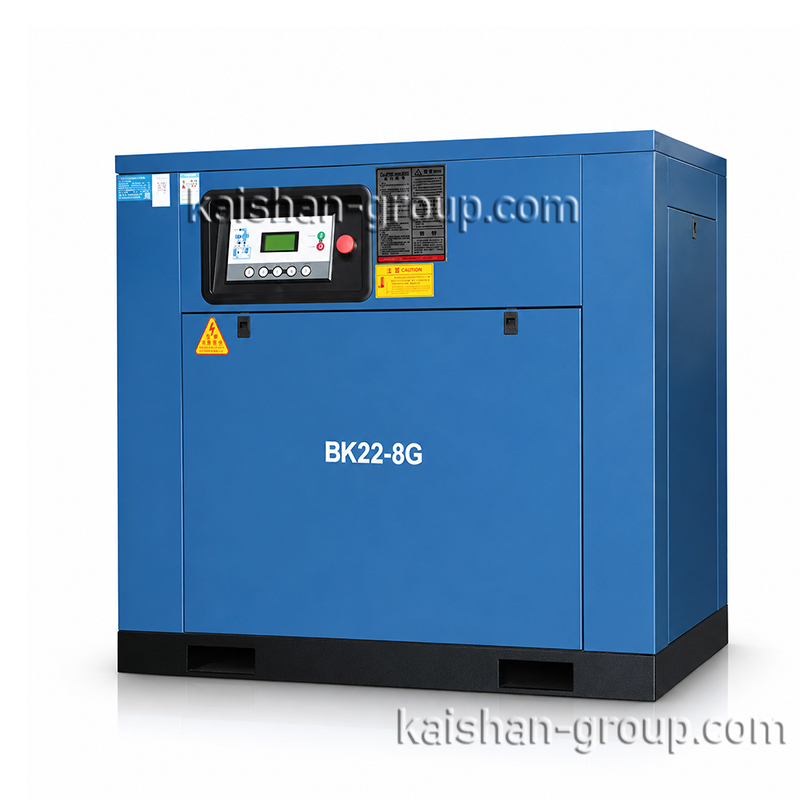

BK22-8G | 0.8 | 3.45 | 22 | G1 | 390 | 1200 | 800 | 1120 |
BK22-10G | 1.0 | 3.20 | 22 | G1 | 390 | 1200 | 800 | 1120 |
BK22-13G | 1.3 | 2.70 | 22 | G1 | 390 | 1200 | 800 | 1120 |
BK30-8G | 0.8 | 5.00 | 30 | G1½ | 470 | 1340 | 850 | 1330 |
BK30-10G | 1.0 | 4.40 | 30 | G1½ | 470 | 1340 | 850 | 1330 |
BK30-13G | 1.3 | 3.60 | 30 | G1½ | 470 | 1340 | 850 | 1330 |
BK37-8G | 0.8 | 6.00 | 37 | G1½ | 560 | 1340 | 850 | 1330 |
BK37-10G | 1.0 | 5.40 | 37 | G1½ | 560 | 1340 | 850 | 1330 |
BK37-13G | 1.3 | 4.60 | 37 | G1½ | 560 | 1340 | 850 | 1330 |
BK45-8G | 0.8 | 7.10 | 45 | G1½ | 720 | 1480 | 1030 | 1340 |
BK45-10G | 1.0 | 6.20 | 45 | G1½ | 720 | 1480 | 1030 | 1340 |
BK45-13G | 1.3 | 5.60 | 45 | G1½ | 720 | 1480 | 1030 | 1340 |
BK55-8G | 0.8 | 10.00 | 55 | G1½ | 790 | 1480 | 1030 | 1340 |
BK55-10G | 1.0 | 7.20 | 55 | G1½ | 790 | 1480 | 1030 | 1340 |
BK55-13G | 1.3 | 6.20 | 55 | G1½ | 790 | 1480 | 1030 | 1340 |
BK75-8G | 0.8 | 13.00 | 75 | G2 | 1200 | 1800 | 1190 | 1710 |
BK75-10G | 1.0 | 11.20 | 75 | G2 | 1200 | 1800 | 1190 | 1710 |
BK90-8G | 0.8 | 16.00 | 90 | G2 | 1240 | 1800 | 1190 | 1710 |
BK90-10G | 1.0 | 12.50 | 90 | G2 | 1240 | 1800 | 1190 | 1710 |
BK110-8T | 0.8 | 21.00 | 110 | DN65 | 1630 | 2100 | 1230 | 1730 |
BK110-8G | 0.8 | 21.00 | 110 | DN65 | 1680 | 2100 | 1230 | 1730 |
BK110-10G | 1.0 | 16.00 | 110 | DN65 | 1680 | 2100 | 1230 | 1730 |
BK132-8T | 0.8 | 24.00 | 132 | DN65 | 1670 | 2100 | 1230 | 1730 |
BK132-8G | 0.8 | 24.00 | 132 | DN65 | 1750 | 2100 | 1230 | 1730 |
BK132-10G | 1.0 | 21.37 | 132 | DN65 | 1750 | 2100 | 1230 | 1730 |
KS150-8-II | 0.8 | 22.00 | 110 | DN65 | 1950 | 2100 | 1230 | 1730 |
KS175-8-II | 0.8 | 25.00 | 132 | DN65 | 1990 | 2100 | 1230 | 1730 |
KS175A-8F | 0.8 | 24.00 | 132 | DN65 | 1470 | 1880 | 1230 | 1670 |
